5/6-pin SW900 color smart meter, e-scooter/mountain bike LCD data display modification part.

The 5/6-pin SW900 color smart meter is a precision LCD display designed for e-scooters and mountain bikes. It provides real-time data monitoring, enhancing your ride with clear, colorful visuals. Compatible with standard 5 or 6-pin connections, this modification part offers seamless integration, allowing riders to track speed, distance, and battery status effectively. Its intuitive interface ensures quick access to crucial metrics, making it an essential upgrade for performance-focused users seeking reliable and accurate data feedback.

- Product Overview:

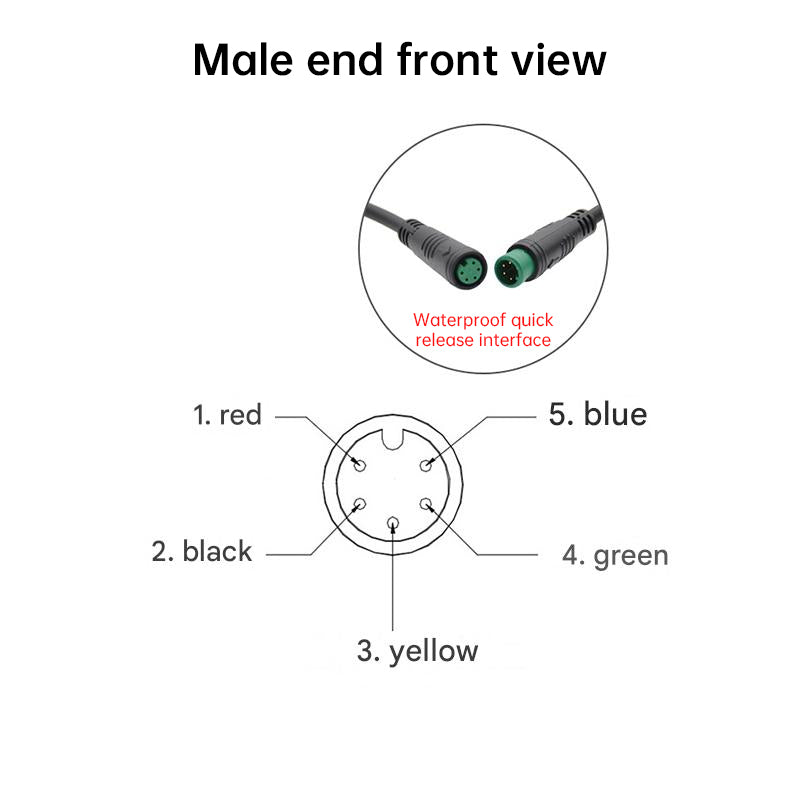

E-bike SW900 LCD Display Speed Control Panel, compatible with 24V/36V/48V, available in 5/6pin adapter cable; suitable for electric scooters and bicycles as a cycling accessory.

- Features:

- New, high-quality, durable ABS material.

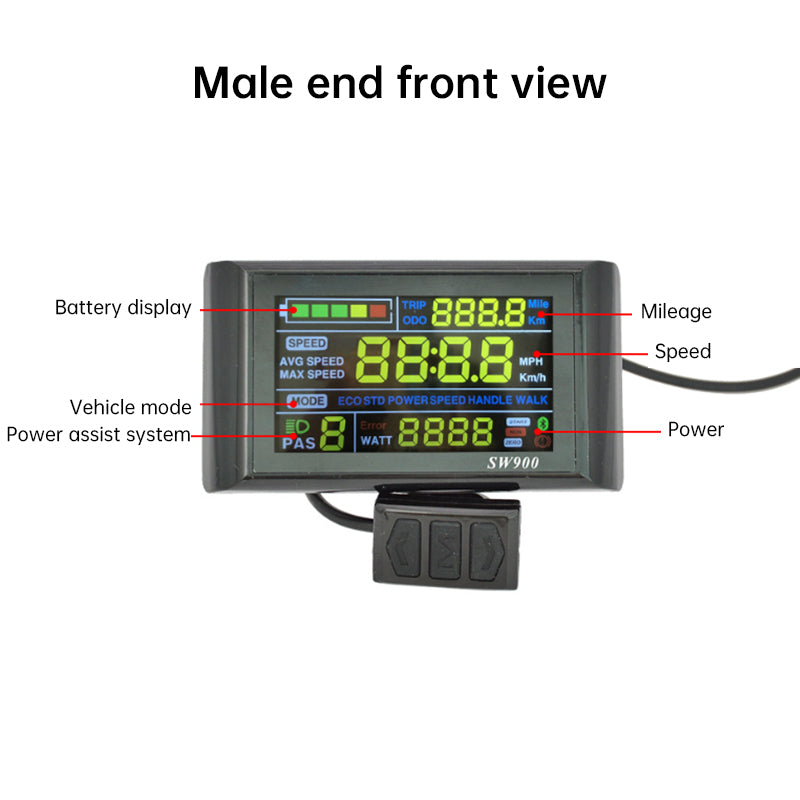

- Automatically identifies 36V/48V; shows battery charge, power consumption, and riding data (speed, time, power, temperature) on a color display.

- Clear joints for cost-effective installation; uses Agreement 2 communication protocol.

- Settings (via long-pressing up/down buttons):

- P01-P02: Backlight brightness, mileage unit (KM/MILE).

- P03-P04: Voltage level (24V/36V/48V), sleep time (0-60min).

- P05-P07: PAS levels, wheel diameter (inches), speed magnet count (1-100).

- P08: Speed limit (0-50km/h, with notes on KM/Mile conversion).

- P09-P10: Zero/non-zero start, driving mode (power-assisted/electric/coexistent).

- P11-P14: Assist sensitivity (1-24), power boost strength (0-5), power-assisted magnet type, controller current limit (1-20A).

- P15-P20: No function, ODO reset (long-press up 5s), cruise control (allowed/not), display speed scale (50%-150%), other protocol settings.

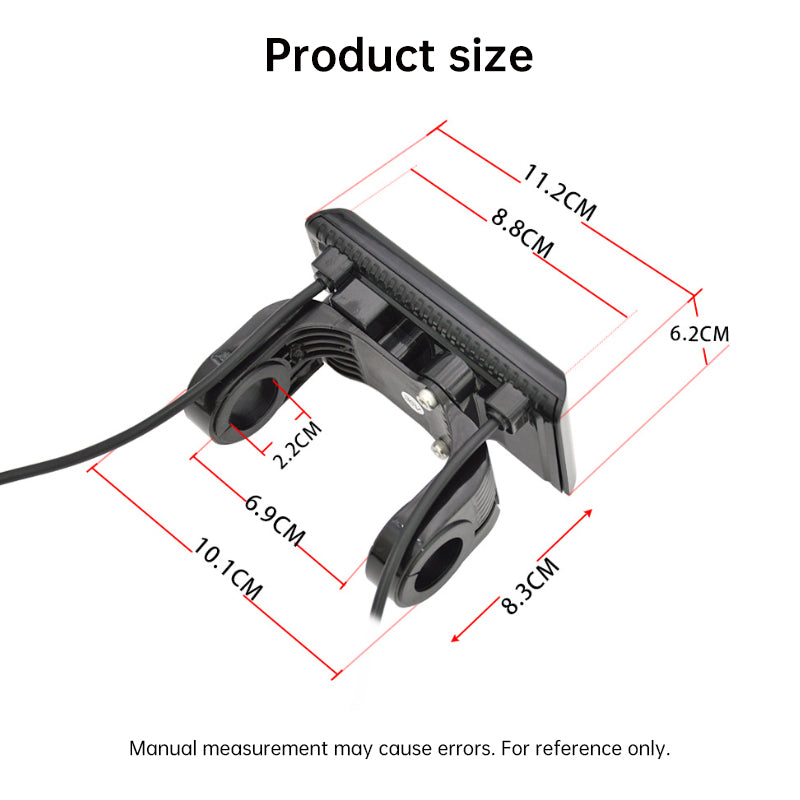

- Specifications: Material (ABS), color (black), weight (~225g), model (5pin/6pin), voltage (24-60V).

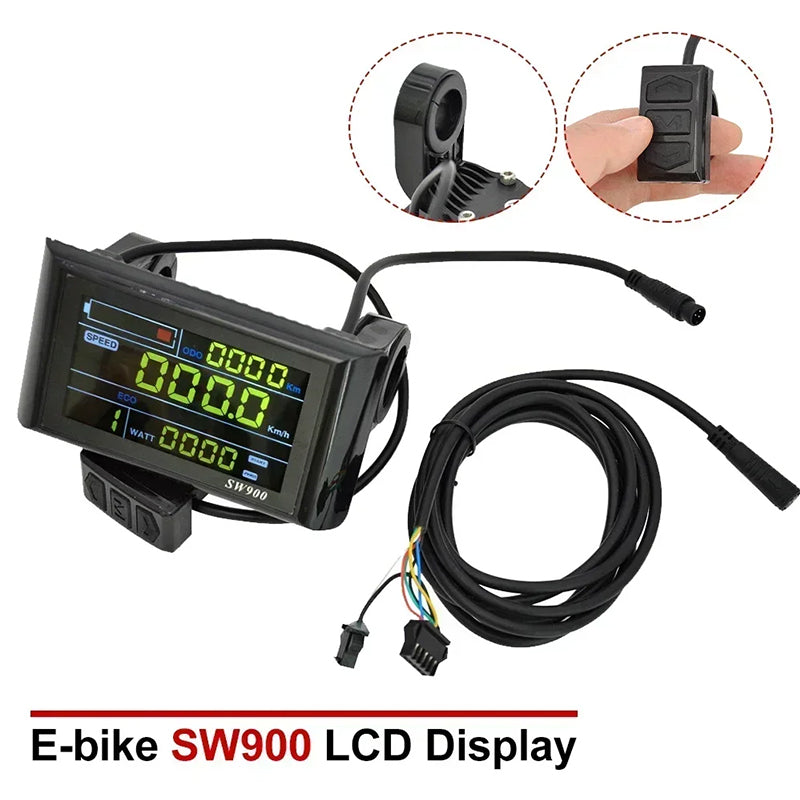

- Package Includes: 1 x LCD display, 1 x adapter cable.
